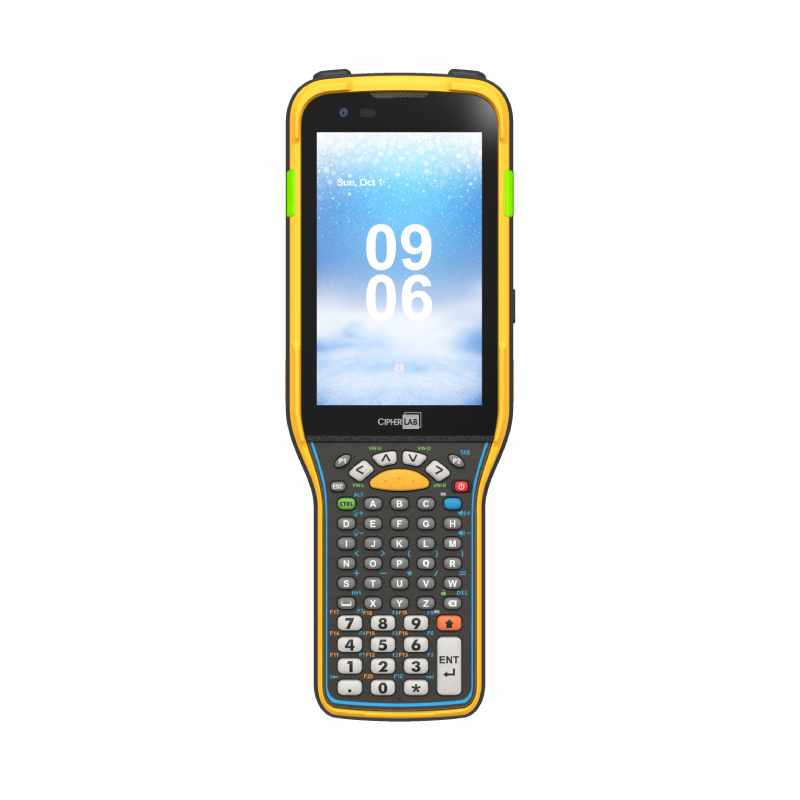

RK96 Series
New

Cold Storage Mobile Computer

Overview
RK96 Cold Storage is designed for modern cold-chain warehouse and logistics, featuring intelligent environmental sensing and fog-free scanning. Its power-optimized architecture supports a wide temperature range for seamless workflow. Equipped with a Qualcomm Q-6690 Octa-core processor (up to 2.9 GHz), it offers Wi-Fi 7, Bluetooth® 6.0, and edge AI computing for enhanced uptime, scanning accuracy, and consistent performance across all facility zones.

Applications:
  • Shipping and Receiving
  • Cross Docking
  • Inventory Management
  • Order and Return Processing
Features


Frost-free Operation in Extreme Temperatures
The RK96 Cold Storage model provides reliable scanning in freezing environments with an integrated ITO heating film for quick defogging. Its temperature sensor and heater control software can automatically or manually adjust heating, ensuring uninterrupted workflows during sudden temperature changes.

Extreme Cold Native Operation
The RK96 Cold Storage is equipped with a high-performance scan engine and sealed device design (IP65) that operates efficiently at temperatures as low as -30 °C (-22 °F). Its 5500mAh battery is specially designed to maintain capacity in low temperatures, ensuring reliable data capture and seamless productivity.

E-ink Display for Enhanced Asset Management and User Identity
An always-on E-Ink Display*on the back can provide clear, consistent, and essential information while consuming minimal power, making it perfect for identifying and durable enough in warehouse environments.
* The E-ink display preserves the last configured information for clear and dependable viewing under 0°C.


Larger and Tactile keypads for Glove-friendly Use
With larger keys and wider spacing, users experience fewer mis-presses and smoother input — even with gloves on. RK96 Cold Storage offers 38-/41-/47-/53-key keypad options to support evolving data entry needs and diverse business application, ensuring flexible configuration and seamless deployment.



Video

Specifications
  Item RK96 Cold Storage
Performance Operating System Android 15 (GMS and AER certified) ,Upgradable to Android  181
CPU Qualcomm Q-6690 Octa-core, up to 2.9GHz, Edge AI enabled
Memory 128GB FLASH / 8GB RAM
Expansion Micro SD Slot With SDHC  (up to 32 GB) and SDXC (up to 2TB) Support
Operating Power Cold Storage: Rechargeable Li-ion : 3.635V, 5500 mAh Li-ion Battery
Hot swap battery backup with temporary session persistence
Working Hours2 Cold Storage: Min. 5 working hours at -30oC (-22oF)
Alert LED indicatores for RF, charging status, scanning status
2 rectangle LED at sides  /  Haptic feedback vibration / Speaker with smart amplifier driver
Interface Supported USB 3.1 Gen 1 Type-C / USB 2.0 with OTG
Wireless Communication WLAN security WEP, WPA (PSK, TKIP), WPA2 (AES, PSK), WPA-1X (TKIP,EAP-TLS, PEAP), WPA2-1X (AES, EAP-TLS, PEAP) ,802.1x (EAP-TLS, PEAP)
AES-CCMP, WPI-SMS4, WPS2.0, WAPI, EAP-TTLS (PAP, MSCHAP, MSCHAPv2), PEAPv0-MSCHAPv2, PEAPv1-EAP-GTC and LEAP, EAP-PWD
WLAN IEEE 802.11 a/b/g/n/ac/ax/be/d/h/i/r/k/v/w ; Wi-Fi 7 (802.11be) , IPv4, IPv6, 2x2 MU-MIMO
Additional WLAN Features 802.11r (fast roaming), 802.11 v/k (Voice-Enterprise) ,dual-band simultaneous(DBS),high-band simultaneous(HBS), tri-band 2.4GHz/5GHz/6GHz Multi-Link Operation (MLO) and eMLSR 320 MHz
WPAN Bluetooth® Class II, V6.0 dual mode, V2.1 with Enhanced Data Rate (EDR); BLE long range
Data Capture Barcode Scanning 1D /2D Imager (SE4750SR/SE4750MR; Extended-Range SE5800)
Camera Rear: 16 megapixels PDAF with LED flash and Optical Image Stabilization (OIS) / Front : 5 megapixels
NFC Supports ISO14443A, ISO14443B, ISO15693, Mifare, Felica (Peer-to-Peer, Card Reader, Card Emulation)
Physical Characteristics Display 4.3”WVGA color display, Capacity Touch supports bare/wet/gloved finger and stylus inputs, Corning Gorilla Glass
E-ink Display 1.3" e-INK 144x200 pixel; display color: Red/Yellow/Black/White
Touch Panel Corning® Gorilla® Cover Glass, Capacitive touch supports stylus, bare or gloved fingertip input multi-touch,  allow water rejection and wet finger
Interactive Sensor Technology Light sensor, Proximity sensor, Motion sensor, E-compass, Gyroscope, Temperature sensor for Cold Storage
Keypad 38-Key/41-Key Numeric/Function Keypads, 47-Key/53-Key Alphanumeric Keypads with LED backlight
Voice and Audio PTT voice ; Speaker, Microphones with noise reduction and echo cancellation, Bluetooth® headset
Size  (LxWxH ) 227.6 mm x 79.8 mm x 43 mm (terminal) / 227.6 mm x 79.8 mm x 167.5 mm (Gun type)
Weight Standard:538.2 g (7000 mAh) with 2D imager
User Environment Operating temperature3 Cold Storage: -30°C to 50°C/-22°F to 122°F
Storage Temperature -30°C to 70°C / -22°F to 158°F
Humidity (Non-Condensed) Operating 5% to 95% / Storage 5% to 95%
Impact Resistance IP65 / 1000 (1 m) Tumbles
Standard: 1.8 m / 2.4 m with Rubber Boot,  multiple drops onto concrete (MIL-STD-810G), crossing operating temperature
Electrostatic Discharge ± 15 kV Air Discharge, ± 8 kV Contact Discharge
Regulatory Compliance FCC / BC / CA65 / TSCA/ NCC / BSMI / CE / WEEE / RoHS / REACH / Erp / BIS/ WPC /IC / NrCAN / RCM (the regulatory compliance for WWAN model is available on request, NRE and MOQ may apply)
Development Support CipherLab API and Android 15 Standard API
Application Software Reader Config, Terminal Emulation, Button Assignment, Device Health Dashboard, LogGen, AppLock, A-Demo, Configuration, Ping Tool, Software Trigger key, Enterprise Settings, SIP Controller, BarcodeToSetting, Pic 'n FillTM OCR
Certified Application SOTI MobiControl, Omnissa Workspace ONE (Vmware AirWatch), Ivanti, ReMoCloud, ReMoCloud Express, EnDeCloud, StayLinked, Springdel
Accessories3 Snap-on Cable (USB), Pistol Grip, Rubber Boot, 4-slot Battery Charger, 5-slot Terminal Charging Cradle, 20-slot Battery Charger, Multi-slot Charging Cradle with Battery Charger, Charging and Communication Cradle, Hand Strap,Shoulder Strap, Belt Holster for Device with Pistol Grip,Pistol Grip Strap
Warranty 3 years
  1. The Android version is subject to technical feasibility confirmed by Qualcomm. Please contact us for availability.
  2. Minimum 8 hours : 2D imager scanning every 20 seconds, LCD at 50% backlight, and speaker on (default volume) at -30°C, Bluetooth® off, IEEE 802.11 a / b / g / n / ac
    on. The test is based on one broadcasting packet per second.
  3. Compatible with RK95 Series accessories, except for the new development.
  4. Product specifications are subject to change without prior notice.

Specification

Accessories
  • Charging and Communication Cradle
  • 4-Slot Battery Charger
  • 5-Slot Terminal Charging Cradle
  • Multi-Slot Cradle with Battery Charger
  • Pistol Grip
  • Snap-On Cable (USB)
  • Shoulder Strap
  • Hand Strap
  • 20-slot Battery Charger
  • Belt Holster
  • Pistol Grip Strap
  • Rubber Boot
  • 5500mAh Battery (Cold Storage Only)
Software
CipherLab Mobile Deployment Suite
CipherLab Utility
  • BarcodeToSetting, App-Lock, Button Assignment, Reader Configuration, Signature Capture, Software Trigger
CipherLab Application Software
Development Tool
  • Xamarin / .NET MAUI Binding
Device Management
