DPM Scanner

Overview

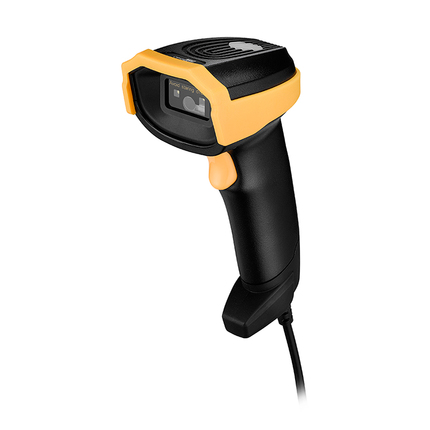

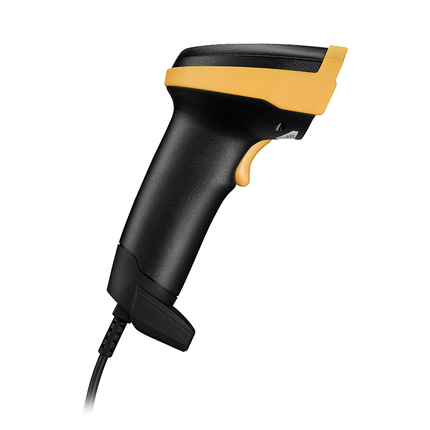

The CipherLab 2506 is a plug-and-play handheld DPM scanner
designed for manufacturing and repair operations. Supporting DPM marking methods including laser-etched, dot-peen, and low-contrast codes, it delivers industry-leading decode performance, lightweight ergonomics, and rapid deployment that enable efficient traceability operations.

Industry Use:

Manufacturing & Production
Electronics Repair
Component Assembly

View More Details

Features

Specifications

Accessories

Download

Superior DPM Decoding Performance

Equipped with a 1.3MP (1280x1024) CMOS sensor, the 2506 delivers precise DPM decoding. It reliably reads challenging DPM markings like laser-etched and dot-peen codes, crucial for demanding manufacturing and repair workflows. It also handles high-density 3 mil 1D and 5 mil 2D barcodes, even with low contrast down to 20% PCS.

Ergonomic, ESD-Protected Design for Industrial Workflows

At only 166g,the 2506 is significantly lighter than typical industrial scanners. Its balanced, ergonomic build is meticulously engineered to minimize operator fatigue, even during high-frequency, repetitive scanning shifts. This focus on an effortless grip keeps operators comfortable and productive all day. Furthermore, the 2506 features a specialized ESD-protective housing, ensuring safe and reliable use in static-sensitive environments like electronics assembly.

Reliable Performance in Demanding Environments

Built for demanding environments, the 2506 features an IP54 rating to protect against dust and splashing water. It is built to withstand multiple 1.5m drops, ensuring reliable operation on assembly lines and at repair stations.

Seamless Plug-and-Play Integration

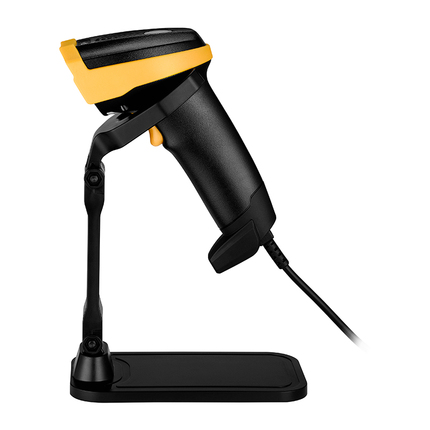

The 2506 is designed for immediate productivity. With simple plug-and-play USB or RS232 connectivity, it integrates seamlessly into existing workstations without complex IT setup. An optional adjustable stand also allows for flexible, hands-free scanning.

Video

Specifications

Model		2506
Category		2D imager
Category		Corded
Performance	Optical sensor	1.3MP / 1280*1024 pixels
	Light source	White light illumiation
	Resolution	1D: 3mil / 0.076mm（Code 39，PCS 0.9） 2D: 5mil / 0.127mm（DataMatrix，PCS 0.9）
	Depth of field	250mm@20mil/0.5mm Code39 PCS 0.9
	Scanning angle	Skew: ± 60°; Pitch: ± 60°; Roll:360°
	Minimum PCS	≥ 20%
	Scan rate	65scans/second
	Ambient illumination	Dark Environment, Indoor Natural Light
	Barcodes supported	1D：UPC-A, UPC-E, EAN-8, EAN-13, Code 128, Code 39, Code 93, Interleaved 2 of 5. 2D: QR, Data Matrix, Micro QR, Aztec and Hanxin Code.Good performace to read DPM barcode
	Programmable features	Interface selection, symbology configuration
Physical	Dimension L x W x H	72.0mm x 171.2mm x 80.9mm
	Weight (without cabe/ with battery)	166g(not include cable)
	Color	Black
	Switch	Trigger Switch: 1,000,000 times @1kg ±50g cycles
	User Indicators	LED、Beeper
Electrical	Voltage	5V ±10%
Electrical	Power consumption² Standby / Operating	150mA / 430mA
User Environment	Temperature	OP Temp：-20 °C to 50 °C Storage Temp：-40 °C to 70 °C
	Humidity	5% to 95%
	Impact resistance	1.5m
	Ingress protection	IP54
	Electrostatic discharge (ESD)	±4 kV Contact / ±8 kV Air
	Regulatory compliance	CE,BSMI,BIS
