RS36 Series
Coming Soon

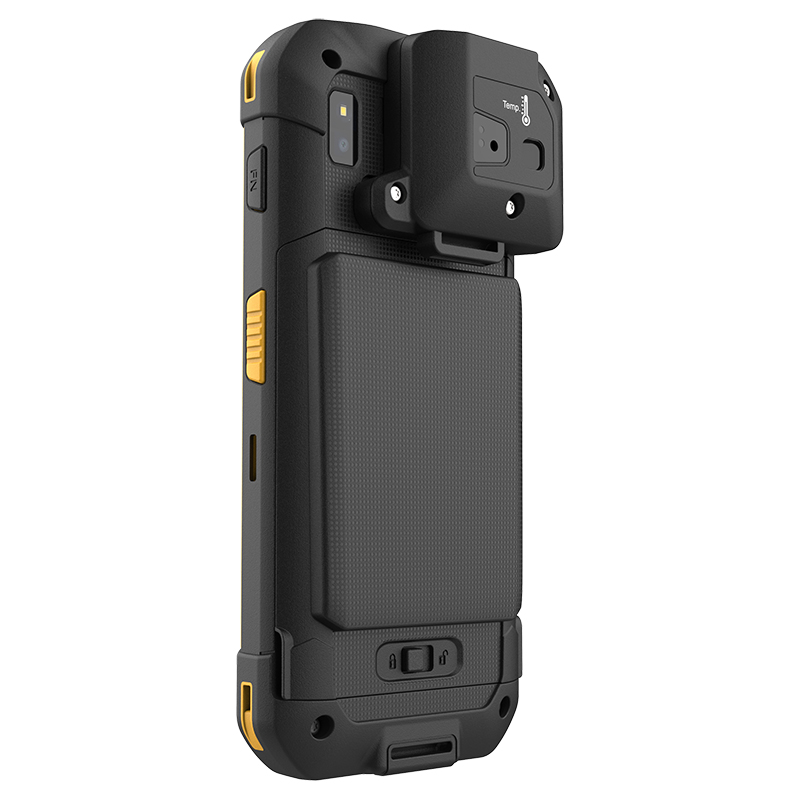

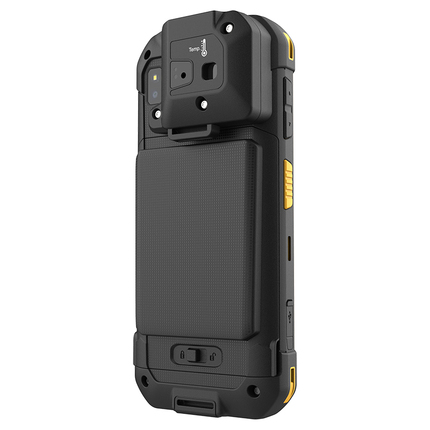

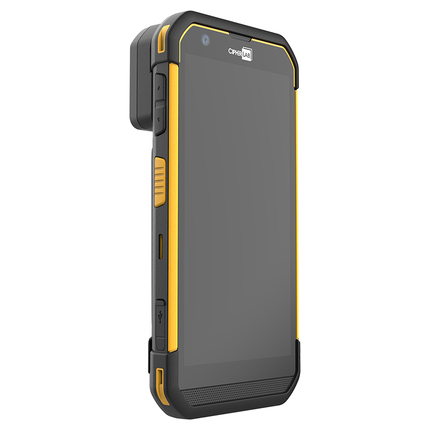

Touch Mobile Computer with Thermometer Sensor
Overview
Industry Use:
- Transportation and Logistics
- Warehousing
- Retail
Specification
Precise and Instant Measurements
The RS36’ s integrated infrared thermometer sensor provides precise, contactless temperature readings in just one second, ensuring accurate data for safe delivery of temperature-sensitive goods.
Efficient Data Capture with Pic'n Fill Solution
Capture both barcodes and temperature data in a single shot, reducing human error and boosting efficiency by automatically storing vital digital data in the system for future reference.
Seamless Operations on One Single Device
Users can easily switch between temperature measurement and other mobile tasks without additional equipment, streamlining the process of managing deliveries and maintaining temperature compliance.
Reliable Infrared Temperature Monitoring for Safe Delivery
Integrated with high-performance infrared thermometer sensor, the RS36 ensures the right temperature for chilled and frozen goods during transport. The capture data can be easily saved as picture proof of delivery.
Full Compatibility with RS36 Accessories
Current RS36 users can extend the device’s capabilities to ensure smooth shipping and receiving operations with overall efficiency with cost-effective upgrades.
Specifications
| RS36 Touch Mobile Computer with Thermometer Sensor | ||
|---|---|---|
| Physical characteristics | Dimension | With RS36: 165.1 mm x 78.5 mm x 36.05 mm |
| Weight | With RS36: 338 g | |
| Power | Li-ion battery pack Typical voltage: 3.85V Standard battery: 4000mAh Extended battery: 6000mAh |
|
| Notification | - | |
| Input | On-screen button | |
| Temperature collection | Temperature Range | -15°C to 30°C / 5°F to 86°F |
| Measure Distance | 2.5 cm – 15 cm | |
| Accuracy | 10°C~30°C:±2 0°C~10°C:±1.0 -15°C~1°C:±2 |
|
| Emissivity | 0.95 Preset (Paper/Plastic) | |
| Response Time | 2000 ms, 95 % response | |
| Distance to Spot Ratio | 1 to 1 | |
| User environment | Drop | 1.2m (With RS36) |
| Operating temperature | -20°C to 50°C / -4°F to 122°F | |
| Storage temperature | -30°C to 70°C / -22°F to 158°F | |
| Sealing | IP54 | |
| Charging time | Full charged time approximate 6 hrs (charge with RS36 data terminal) |
|
| ESD | ± 15kV air discharge / ± 8kV contact discharge | |
| EMC | CE, FCC, NC, JRL, NBTC, WPC | |
| Software | Thermal Receiver Thermal Camera |
|
| Accessories | Charging and communication cradle, Snap-on cable, Hand strap, 4-slot battery charger, 5-slot Terminal charging cradle, Battery charger with terminal charging cradle, Shoulder strap, Screen protector |
|
| Warranty | 1 year | |
- Note: Product specifications are subject to change without prior notice.
