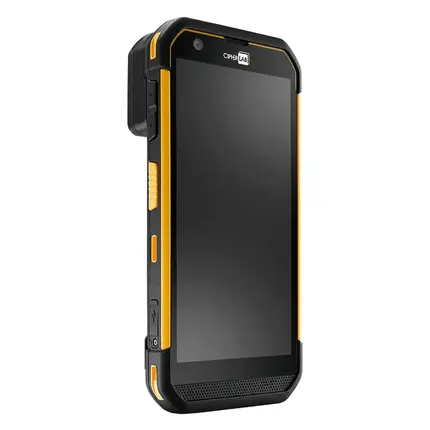

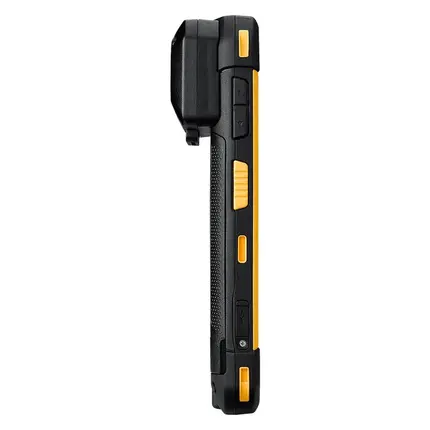

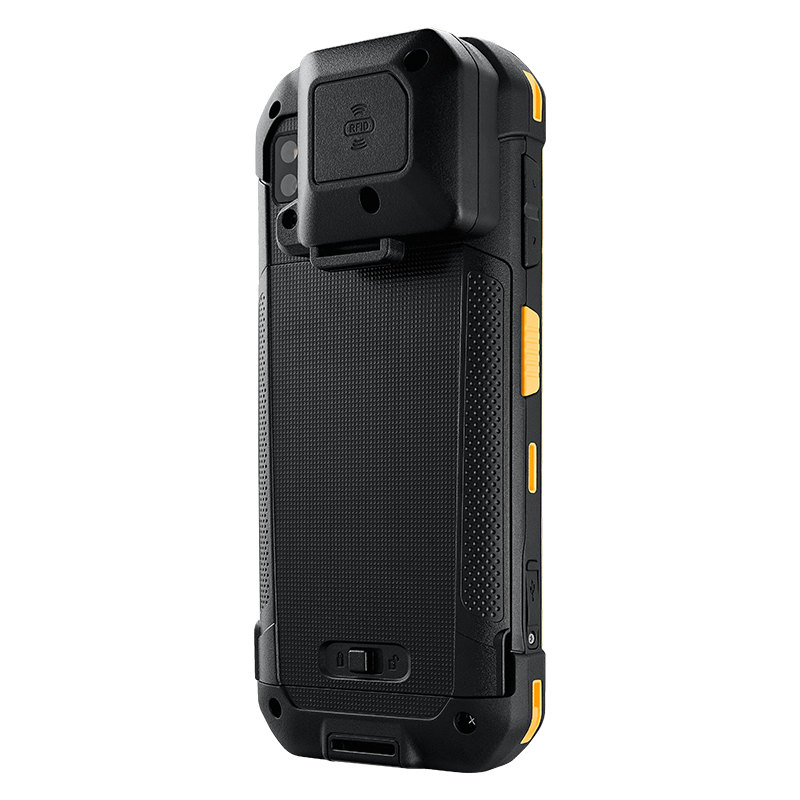

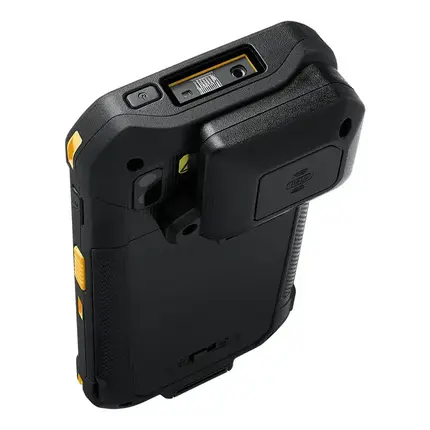

RS36
NUHF RFID Reader
Overview
Applications:
- Inventory Management
- Asset Tracking
- Event Management
- Medical Devices & Patient Tracking
- Tool Tracking
Features
Event Management and Access Control
The RS36 NUHF RFID reader, an Android-based mobile computer with integrated RFID, is ideal for events, conferences or hospitality industries. It manages attendees, ticketing, and access control, allowing staff to validate RFID tags or wristbands and sync data wirelessly in real time.
Asset Tracking
Businesses and healthcare facilities use the RS36 short range RFID readers to track assets like equipment, supplies, tools, and vehicles. This optimizes asset utilization, prevents loss, and streamlines maintenance.
Patient Tracking
The RS36 short range RFID enables reading patients' wristbands through clothing or bed coverings without disturbing them. This ensures accurate identity verification, allowing for the proper care to be provided.
Inventory Management
The RS36 NUHF RFID Reader facilitates frequent inventory tracking, ensuring accurate control and timely replenishment. With a 5-meter reading range, RFID-tagged item scan be quickly identified and accounted for.
Specifications
| RS36 NUHF RFID Reader | ||
|---|---|---|
| Physical characteristics | Communication | Electrical 8-pin connection |
| Dimension | With RS36: 165 mm x 78.6 mm x 37.2mm | |
| Weight | With RS36: 337 g | |
| Power | Li-ion battery pack Typical voltage: 3.85V Typical capacity: 4000mAh |
|
| Notification | - | |
| Input | Trigger key | |
| RFID performance | Standard | EPC C1 GEN2 / ISO18000-6C |
| RF module | Impinj E310 entry level UHF RFID chipset solution | |
| Antenna | Circularly polarized | |
| Fastest read data rate *1 | 200+ tags/sec* | |
| RF power level | 0-26,26steps | |
| Maximum read range*1 | 5 m (16.4 ft) | |
| Frequency range | US:902~928MHz | |
| EU: 865~868MHz | ||
| JP: 916~920MHz | ||
| AU: 920-924MHz | ||
| User environment | Drop | 1.2m (With RS36) |
| Operating temperature | -20°C to 50°C / -4°F to 122°F | |
| Storage temperature | -30°C to 70°C / -22°F to 158°F | |
| Sealing | IP54 | |
| Charging time | Full charged time approximate 4 hrs (charge with RS36 data terminal) |
|
| ESD | ± 15kV air discharge / ± 8kV contact discharge | |
| EMC | CE, FCC, NC, JRL, NBTC, WPC | |
| Software | RFID Android Software Development Kit | |
| EZConfig with filter repeated tags | ||
| EZEdit | ||
| Accessories | Charging and communication cradle, Snap-on cable, Hand strap, 4-slot battery charger, 5-slot Terminal charging cradle, Battery charger with terminal charging cradle, Shoulder strap, Screen protector |
|
| Warranty | 1 year | |
- The fastest read rate are subject to the function setting, tag performance, test environment and conditions. The test results are based on Smartrac DogBone RFID tag Impinj Monza R6-P (97 x 27 mm / 3.82 x 1.06 in)
- The scanning speeds are reference values. Actual multiple scanning speeds may vary depending on the environment. The results were tested by CipheLlab's Fastest mode setting with FM0 400KHz/640KHz, Section0, Dynamic Q in ALN9740 700 tags space..
Charging and Communication Cradle
4-Slot Battery Charger
5-Slot Terminal Charging Cradle
Battery Charger with Terminal Charging Cradle
Snap-On Cable (USB)
Hand Strap
Shoulder Strap
Belt Holster
